Best Seller

Gen II LoPro

10 Series

The 10 Series is the truck you see behind Ram 5500s and Ford F-550s all over the country, with a load angle as low as 9° and a 19'6" or 20' deck. The 21' deck can't go on a Ram 5500, Ford F-550 or F-600. An optional 100" width gives you more room.

10,000 lbDeck rating

3,500 lbWheel lift rating

19'6" / 20' / 21'Deck length

As low as 9°Load angle

96"Bed width (100" or 102" opt.)

9KWarn planetary winch

Standard Equipment

16' Quad Rail Sub-Frame
Dual 4" I-beams with wide flange
3/16" thick non-decoil deck sheet
2" × 2" × 11-gauge square tube crossmembers
10" crossmember spacing
Solid removable rails
Front & rear inserts
(11) T-slots
T-slot baskets on bed
1,152 sq. in. of bed slide wear pads
Dual flange bed lock
(2) Sascoloy hinge pins
High-gloss black paint finish
3,500 lb. wheel lift
Crossbar with hitch receiver
Driver & passenger side L-arms
Driver & passenger side slide grids
Bed-mounted pylon with (2) safety chain tie-down points
Sub-Frame chain buckets with (2) 10' safety chains
4-prong tow plug
Warn 9K planetary winch
3/8" × 75' winch cable with self-locking hook
Remote clutch release for winch
Control panel with dual handles and night light
Hydraulic tank & filter
LED stop/tail/turn
(8) LED bed marker lights: (2) 3/4" and (6) 2"
(2) upper LED work lights
(2) lower LED work lights
(2) 3/4" LED marker lights in Sub-Frame
DOT lights in Sub-Frame
Back-up alarm
Fire extinguisher
(2) DUAL-TECH mud flaps

Available Options

Custom bed color
Diamond deck sheet
Non-skid bed center
Non-skid stripes
100" wide bed with solid removable rails
102" wide bed with formed rails
8" crossmember spacing
2" × 2" × 3/16" square tube crossmembers
Extra T-slots with baskets
Center bed T-slots with baskets
Stationary pylon
Quarter fenders
Full fenders
36" toolboxes
48" toolboxes
60" toolboxes
86" toolboxes
Custom toolbox configuration
Toolbox top tray
Fender boxes / baskets
4,000 lb. wheel lift
Self-loader wheel lift & crossbar
Wheel lift lasso straps & ratchets
8' safety chains
10' safety chains
V-bridle
Custom chain combination
8-point tie-down set
Trailer hitch & pin
PTO / pump combo
Clutch pump
Air compressor
Air hose reel
Air winch clutch release
2-function up to 12-function remote, electric or air
Lightbar
Strobe package: (2) in tail panel, (4) in grille
Extra LED marker lights for bed
Extra LED marker lights for pylon
Chrome bezels on Sub-Frame taillights
Chrome bezels on bed lights
Chrome bezels on pylon lights
All 3/4" LED bed marker lights
Magnetic tow lights
Back-up camera
Custom lighting
Safety kit
Custom accessories
Alcoa covers / simulators
Stainless package
Switch panel
Jumpstart kit
Installation

All toolboxes come standard with interior lights.

For more custom options, contact DUAL-TECH.

Warranty: 2 years on DUAL-TECH manufactured parts, 1 year on components.

Quote a 10 Series →▶ Videos

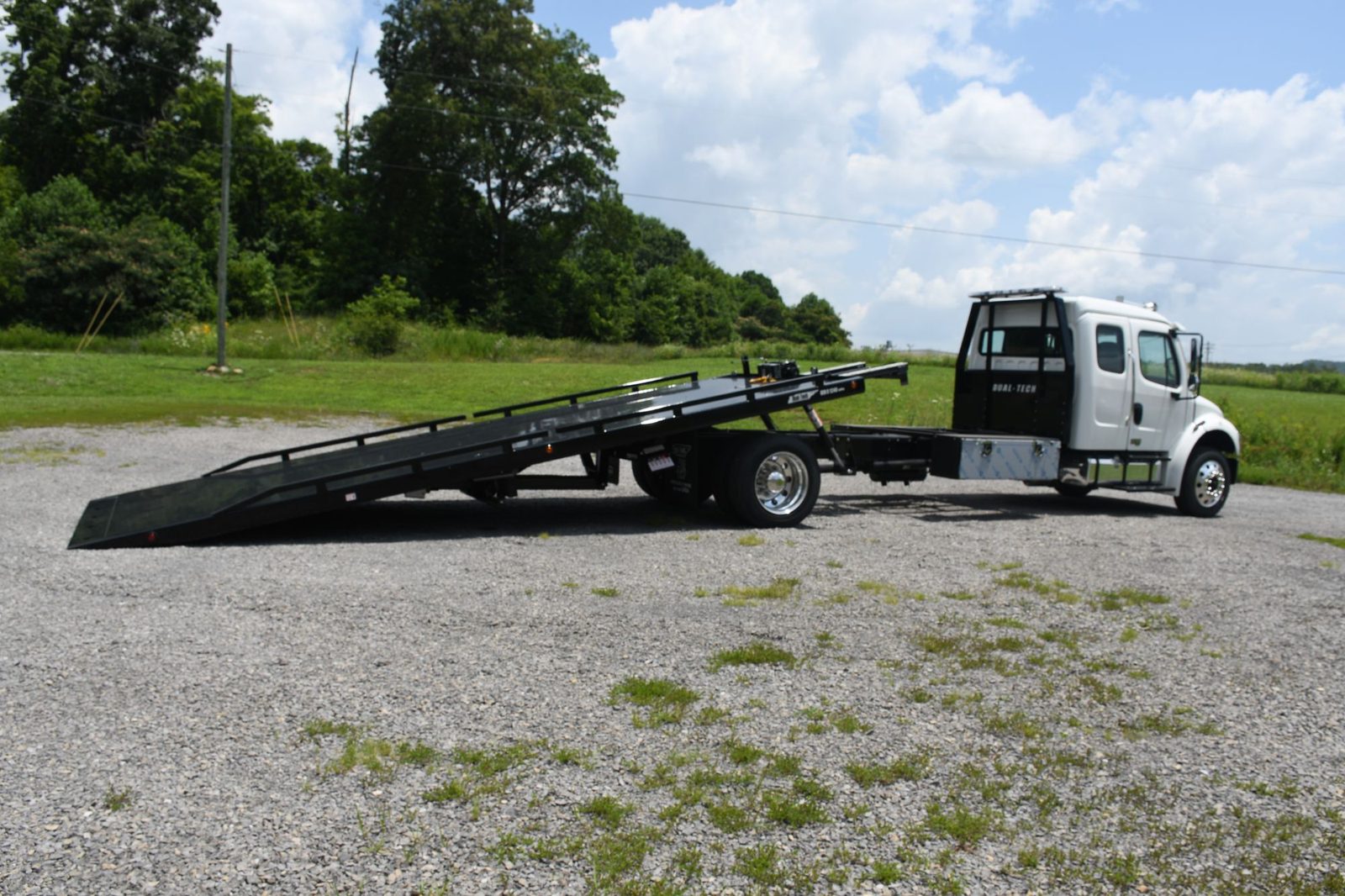

Medium Duty

Gen II LoPro

12 Series

The do-everything deck for a busy operation. The 12 Series steps up to a full 102" bed, formed side rails, a 4,000 lb. wheel lift and a Warn 9K planetary winch, in lengths up to 23 feet, with a load angle as low as 9°.

12,000 lbDeck rating

21' / 22' / 23'Deck length

102"Bed width

4,000 lbWheel lift

9KWarn planetary winch

As low as 9°Load angle

Standard Equipment

16' Quad Rail Sub-Frame
Dual 4" I-beams with wide flange
3/16" thick non-decoil deck sheet
2" × 2" × 11-gauge square tube crossmembers
8" crossmember spacing
102" wide bed with formed rails
Front & rear inserts
(11) T-slots
T-slot baskets on bed
1,152 sq. in. of bed slide wear pads
Dual flange bed lock
(2) Sascoloy hinge pins
High-gloss black paint finish
4,000 lb. wheel lift
Crossbar with hitch receiver
Driver & passenger side L-arms
Driver & passenger side slide grids
Bed-mounted pylon with (2) safety chain tie-down points
Sub-Frame chain buckets with (2) 10' safety chains
4-prong tow plug
Warn 9K planetary winch
3/8" × 75' winch cable with self-locking hook
Remote clutch release for winch
Control panel with dual handles and night light
Hydraulic tank & filter
LED stop/tail/turn
(8) LED bed marker lights: (2) 3/4" and (6) 2"
(2) upper LED work lights
(2) lower LED work lights
(2) 3/4" LED marker lights in Sub-Frame
DOT lights in Sub-Frame
Back-up alarm
Fire extinguisher
(2) DUAL-TECH mud flaps

Available Options

Custom bed color
Diamond deck sheet
Non-skid bed center
Non-skid stripes
6" crossmember spacing
2" × 2" × 3/16" square tube crossmembers
Extra T-slots with baskets
Center bed T-slots with baskets
Stationary pylon
DSP 9/9 sidepuller
DSP 12/12 sidepuller
Quarter fenders
Full fenders
36" toolboxes
48" toolboxes
60" toolboxes
86" toolboxes
Custom toolbox configuration
Toolbox top tray
Fender boxes / baskets
Basket with stainless cover
6,500 lb. wheel lift
Self-loader wheel lift & crossbar
Wheel lift lasso straps & ratchets
8' safety chains
10' safety chains
V-bridle
Custom chain combination
8-point tie-down set
Trailer hitch & pin
PTO / pump combo
Clutch pump
Air compressor
Air hose reel
Warn 12K planetary winch
Air winch clutch release
2-function up to 12-function remote, electric or air
Lightbar
Strobe package: (2) in tail panel, (4) in grille
Extra LED marker lights for bed
Extra LED marker lights for pylon
Chrome bezels on Sub-Frame taillights
Chrome bezels on bed lights
Chrome bezels on pylon lights
All 3/4" LED bed marker lights
Magnetic tow lights
Back-up camera
Custom lighting
Safety kit
Custom accessories
Alcoa covers / simulators
Stainless package
Switch panel
Jumpstart kit
Installation

All toolboxes come standard with interior lights.

For more custom options, contact DUAL-TECH.

Warranty: 2 years on DUAL-TECH manufactured parts, 1 year on components.

Quote a 12 Series →▶ Videos

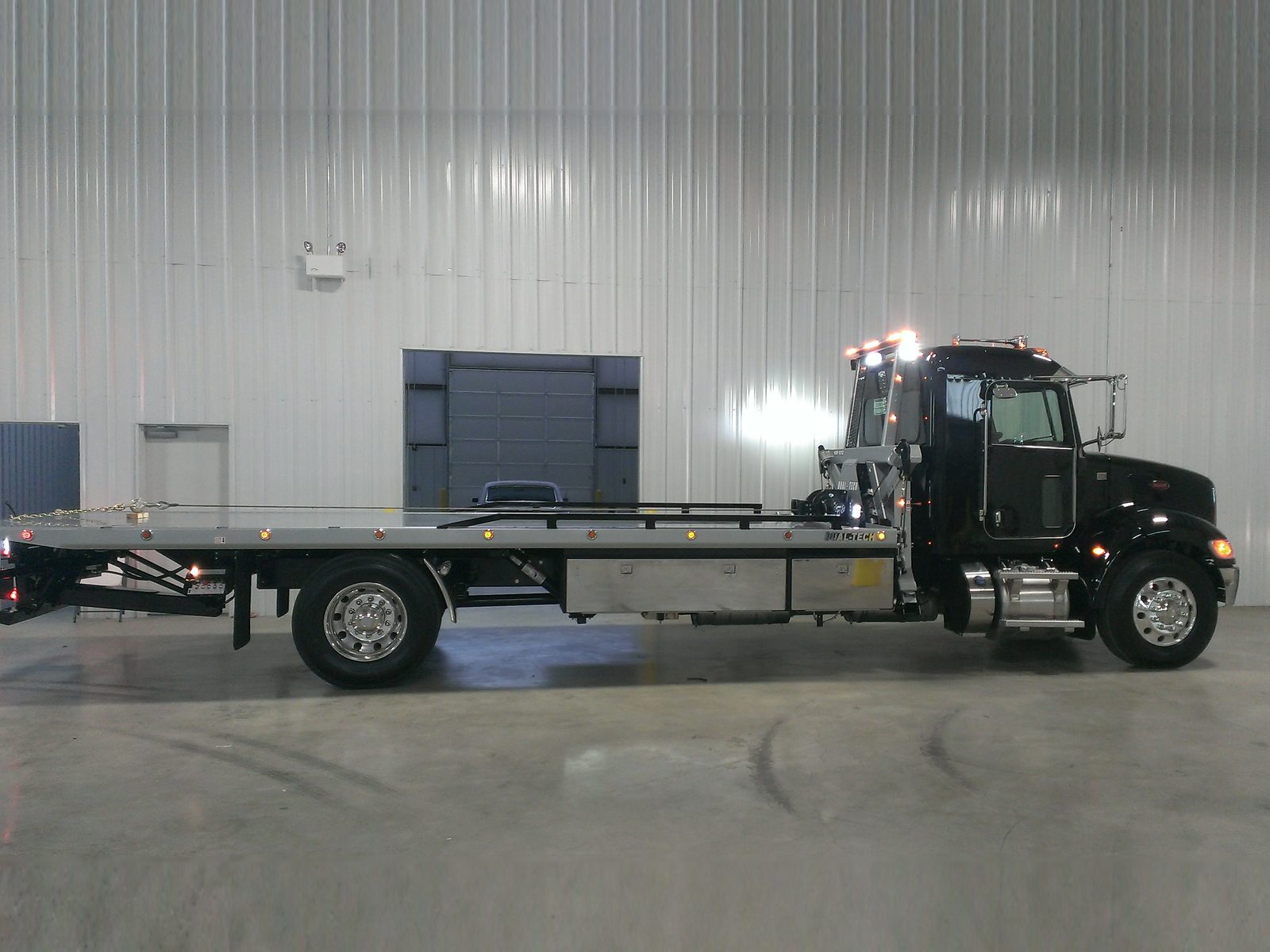

16 Series Gen II rollback on a black Peterbilt

Top of the Line

Gen II LoPro

16 Series

Rated for 16,000 lb and made for operators who haul heavy every day and won't give up the low-profile load angle to do it. Decks run 22', 23' and 24' on a full 102" bed, with a 4,000 lb. wheel lift and a Warn 9K planetary winch.

16,000 lbDeck rating

22' / 23' / 24'Deck length

102"Bed width

4,000 lbWheel lift

As low as 9°Load angle

9KWarn planetary winch

Standard Equipment

16' Quad Rail Sub-Frame
Dual 6" I-beams with wide flange
3/16" thick non-decoil deck sheet
2" × 2" × 11-gauge square tube crossmembers
8" crossmember spacing
102" wide bed with formed rails
Front & rear inserts
(11) T-slots
T-slot baskets on bed
1,152 sq. in. of bed slide wear pads
Dual flange bed lock
(2) Sascoloy hinge pins
High-gloss black paint finish
4,000 lb. wheel lift
Crossbar with hitch receiver
Driver & passenger side L-arms
Driver & passenger side slide grids
Bed-mounted pylon with (2) safety chain tie-down points
Sub-Frame chain buckets with (2) 10' safety chains
4-prong tow plug
Warn 9K planetary winch
3/8" × 75' winch cable with self-locking hook
Remote clutch release for winch
Control panel with dual handles and night light
Hydraulic tank & filter
LED stop/tail/turn
(8) LED bed marker lights: (2) 3/4" and (6) 2"
(2) upper LED work lights
(2) lower LED work lights
(2) 3/4" LED marker lights in Sub-Frame
DOT lights in Sub-Frame
Back-up alarm
Fire extinguisher
(2) DUAL-TECH mud flaps

Available Options

Custom bed color
Diamond deck sheet
Non-skid bed center
Non-skid stripes
20' Quad Rail Sub-Frame
6" crossmember spacing
2" × 2" × 3/16" square tube crossmembers
Extra T-slots with baskets
Center bed T-slots with baskets
Stationary pylon
DSP 9/9 sidepuller
DSP 12/12 sidepuller
Quarter fenders
Full fenders
36" toolboxes
48" toolboxes
60" toolboxes
86" toolboxes
Custom toolbox configuration
Toolbox top tray
Fender boxes / baskets
6,500 lb. wheel lift
Self-loader wheel lift & crossbar
Wheel lift lasso straps & ratchets
8' safety chains
10' safety chains
V-bridle
Custom chain combination
8-point tie-down set
Trailer hitch & pin
PTO / pump combo
Clutch pump
Air compressor
Air hose reel
Warn 12K planetary winch
15K planetary winch
Air winch clutch release
2-function up to 12-function remote, electric or air
Lightbar
Strobe package: (2) in tail panel, (4) in grille
Extra LED marker lights for bed
Extra LED marker lights for pylon
Chrome bezels on Sub-Frame taillights
Chrome bezels on bed lights
Chrome bezels on pylon lights
All 3/4" LED bed marker lights
Magnetic tow lights
Back-up camera
Custom lighting
Safety kit
Custom accessories
Alcoa covers / simulators
Stainless package
Switch panel
Jumpstart kit
Installation

All toolboxes come standard with interior lights.

For more custom options, contact DUAL-TECH.

Warranty: 2 years on DUAL-TECH manufactured parts, 1 year on components.

Quote a 16 Series →▶ Videos

Self-Loader

Self-Loader Wrecker

SL-40

Hook up without leaving the cab. The SL-40 puts the DUAL-TECH self-loader head on a light-duty chassis, which makes it ideal for repo, city calls and tight lots. It runs entirely by an 8- or 10-function air remote. One even got a one-of-a-kind paint job from Count's Kustoms.

7,500 lbTowing capacity

4,000 lbLift rating

86"Reach (60" retracted)

−23°Negative tilt

96"Wide body

60"Cab to axle

Standard Equipment

DUAL-TECH self-loader head
Self-leveling wheel lift
Dual 3/16" thick aluminum body
Aluminum body color-matched to the cab
Black center
Built-in dual toolboxes, 38"L × 21"T × 20"D
Dual toolbox lights
LED upper work lights
LED lower work lights
Back-up camera
Air compressor
Air remote only (no handles), 8 or 10 function
Air function valve body
7-way tow plug
(2) wheel ratchets with straps
(2) 10' safety chains
Fire extinguisher
(2) DUAL-TECH mud flaps

Available Options

Warn 9K planetary winch
3/8" × 75' winch cable with self-locking hook
Sheave head assembly
Air winch clutch release
(2) dollies with mounts
Custom chain configuration
Clutch pump
LED strobe package: (4) in grille, (2) in tailboard
Custom 3/4" LED lighting
Safety kit
Aluminum tread plate covers
Custom paint
Installation

For more custom options, contact DUAL-TECH.

Warranty: 2 years on DUAL-TECH manufactured parts, 1 year on components.

Quote an SL-40 →▶ Videos

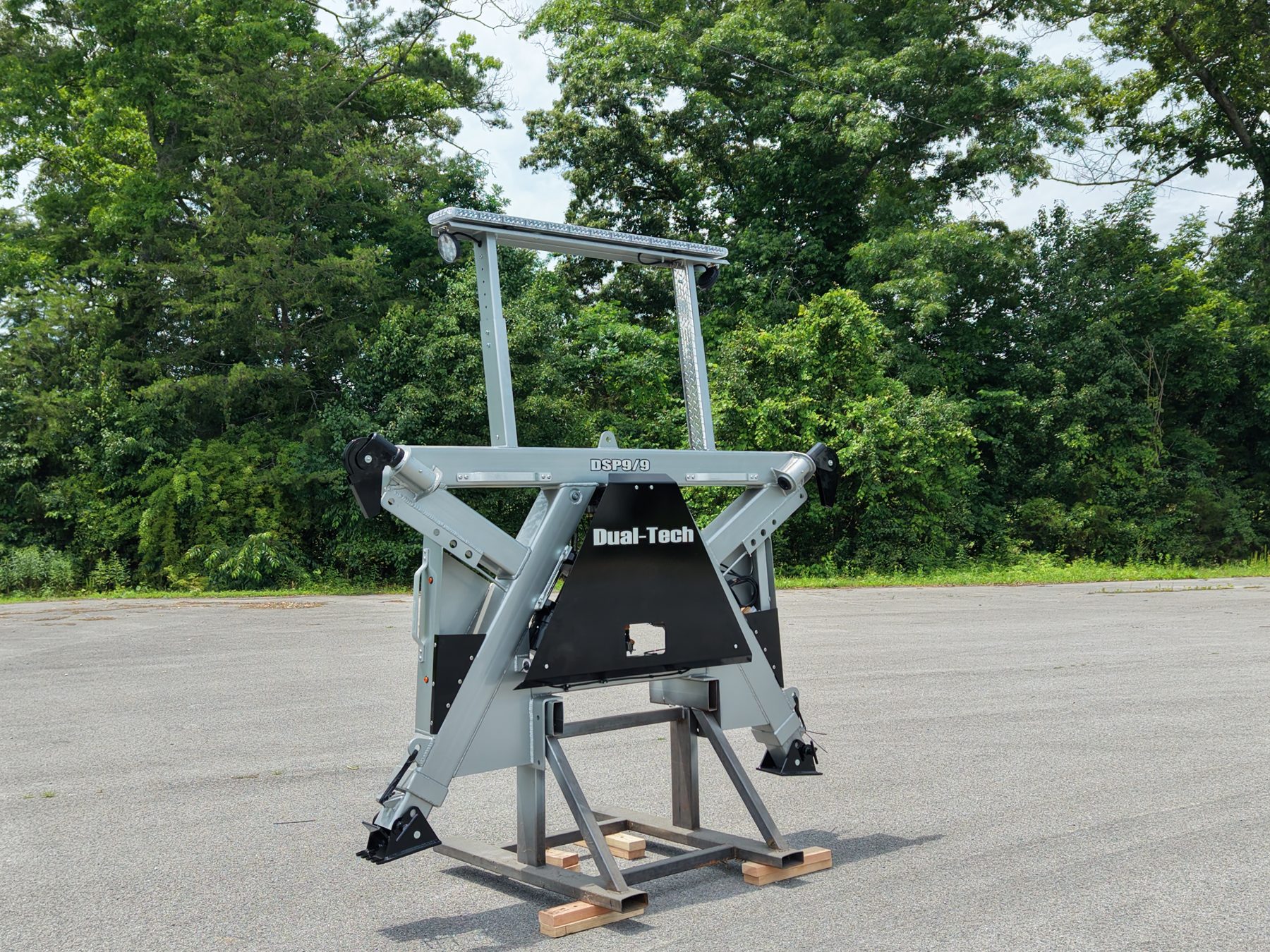

DUAL-TECH DSP 9/9 sidepuller on its stand

Recovery

Rollback-Mounted Sidepuller

DSP 9/9 & 12/12

Built Stronger Than It Has To Be. The DUAL-TECH sidepuller mounts behind the cab and turns your rollback into a recovery truck, so you can handle ditch pulls and side recoveries that a flatbed alone can't reach. Manufactured in Bean Station.

9,000 lbDSP 9/9 winches

12,000 lbDSP 12/12 winches

DualWinches, wireless remote

Standard Equipment

Dual winches
Wireless full-function remote
Air free spool
8 tie-back points
3/4" LED marker lights
Hydraulic stiff legs
Adjustable pylon
Shackles
Pads w/ fold-down spades
Manual controls
2 winch tensioners
Winch cover plate
(2) 3/8" × 75' winch cables w/ self-locking hooks
Gloss black paint

Available Options

Custom colors
Strobe package
Snatch block

For more custom options, contact DUAL-TECH.

Warranty: 2 years on DUAL-TECH manufactured parts, 1 year on components.

Quote a DSP Sidepuller →▶ Videos

DUAL-TECH welder building a deck in Bean Station

Built to Order

Custom Sizes & Special Jobs

Don't See Your Size?

Every DUAL-TECH is built to order in Bean Station, so the sizes on this page are a starting point, not a limit. Odd bed lengths, custom decks, municipal and heavy-recovery setups, or a chassis nobody else wants to touch. Tell us the job and we'll build it.

CustomBed lengths

Any colorDeck and chassis

Your chassisOr we supply it

What We Build

Custom bed lengths and widths
Custom deck and toolbox layouts
Municipal and fleet builds
Heavy-recovery setups
Color matching and custom paint
Sidepuller and wrecker combinations

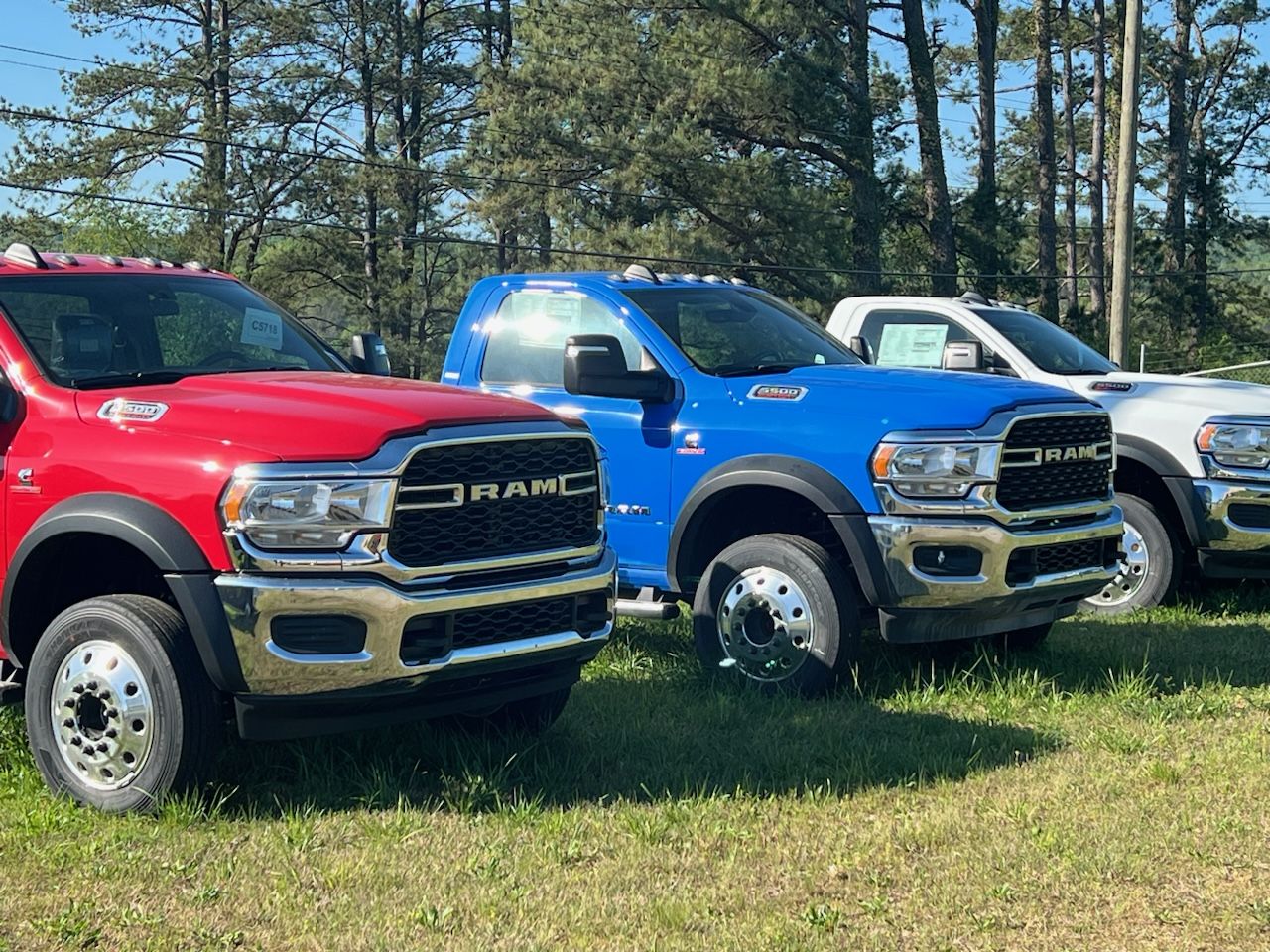

Customer-supplied chassis

How It Works

Call the factory or send the quote form
Tell us the job, the chassis and your timeline
We price it and confirm what's possible
Your truck is manufactured in East Tennessee
Warranty: 2 years on DUAL-TECH manufactured parts, 1 year on components.

Get a Custom Quote →Toll-free 800.852.0345 Local 865.767.3456

The Lineup

10 Series

12 Series

16 Series

SL-40

DSP 9/9 & 12/12

Don't See Your Size?

What We Build

How It Works

Compare Gen II Models

Built on the Truck You Run.

Not Sure Which Deck?

Spec	10 Series	12 Series	16 Series
Deck rating	10,000 lb	12,000 lb	16,000 lb
Lengths	19'6", 20', 21'	21', 22', 23'	22', 23', 24'
Bed width	96" (100" or 102" opt.)	102"	102"
Side rails	Solid removable	Formed	Formed
Crossmember	10" spacing (8" opt.)	8" (6" opt.)	8" (6" opt.)
Wheel lift	3,500 lb (4,000 opt.)	4,000 lb (6,500 opt.)	4,000 lb (6,500 opt.)
Load angle	As low as 9°	As low as 9°	As low as 9°
Winch	Warn 9K planetary	Warn 9K planetary (Warn 12K opt.)	Warn 9K planetary (Warn 12K or 15K opt.)
Sidepuller	—	DSP 9/9 or 12/12 opt.	DSP 9/9 or 12/12 opt.
Sub-Frame	16' Quad Rail	16' Quad Rail	16' Quad Rail (20' opt.)
I-beams	4"	4"	6"
Warranty	2 years on DUAL-TECH manufactured parts, 1 year on components.	2 years on DUAL-TECH manufactured parts, 1 year on components.	2 years on DUAL-TECH manufactured parts, 1 year on components.
